Factory sliding gate opener 3000kg heavy duty motor for industrial automatic gates.
3000kg heavy duty sliding gate opener motor for industrial and factory gates
Roll over image to zoom in
Click to open expanded view

Z30T AC 4000KG Automatic Sliding Gate Opener

    In stock

    Here comes with the new updated Z30 heavy duty sliding gate opener, suitable for both Industrial and commercial use, 380V (3 Phase) mechanical Limit switch system, we make some changes, which can better improve the heating problem, and the gate motor works more stable and durable

    Buy Now on WhatsAppWatch Video
    Categories: ,

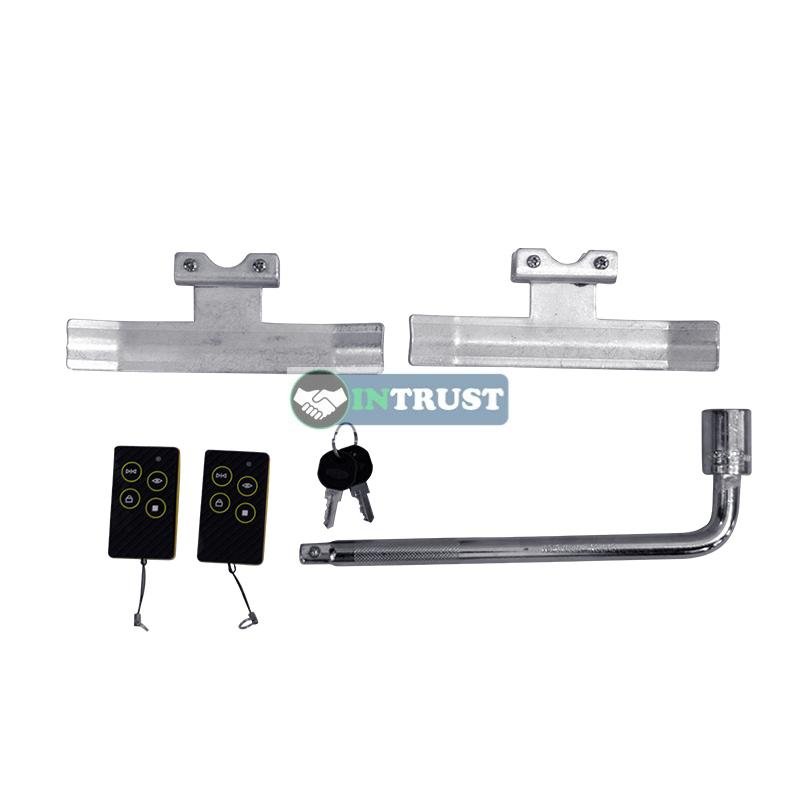

    • 1 x 36kg Gate Motor
    • 2 x Remote Controls
    • Brackets, Fittings & Hardware
    • Instruction Manual
    • 2X Control Box
    • 2X Clutch Key
    • 2X Block Iron
    • 2X Magnet
    • 1X Set Screw
    • Optional Components:Alarm Lamp, Infrared ray, Back-up supply, Bluetooth, Vehicle Remote Control, Mobile Phone Visual Control, WIFI….etc

    Feature:

    • Overheating protector
    • Smooth operation,Easy installation

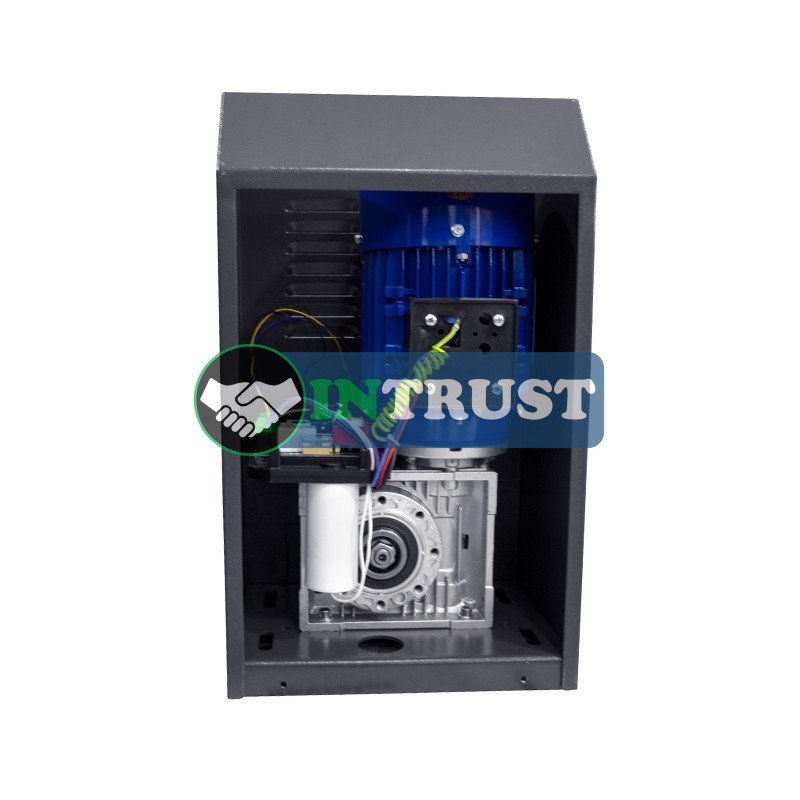

    • Transmission structure of turbine and turbine rod
    • Manual clutch when power failure



    Technical Data Sheet:

    Input Voltage: :AC380V
    Power::75OW
    Rotation Speed::1400rpm
    Torque: :35Nm
    Running Speed::14m/min
    Max. Gate Weight: :3000KG
    Temperature: :-45°C~+65°C
    Noise: :<56dB

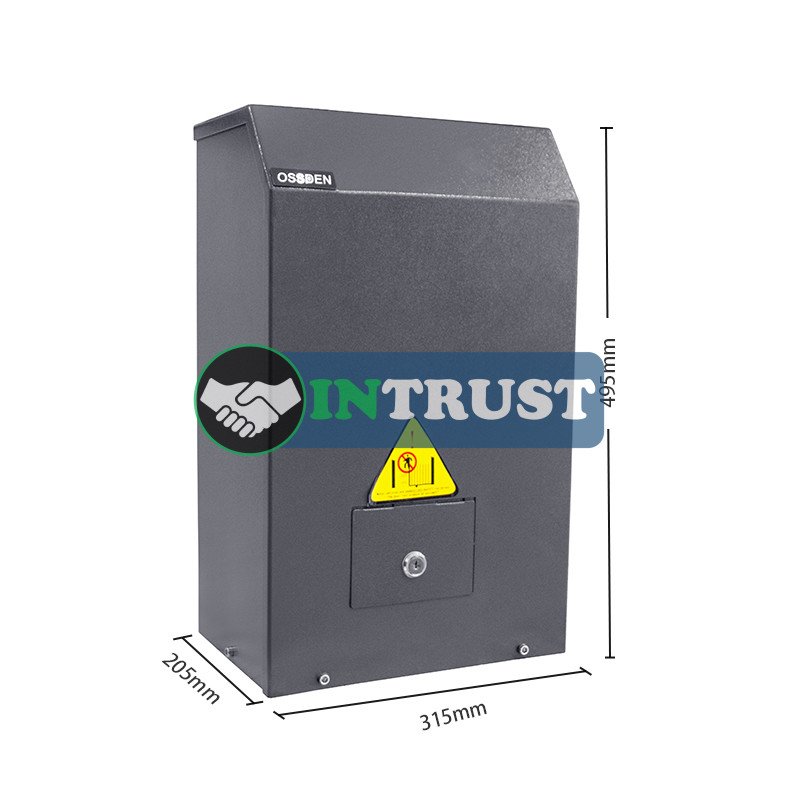

    Dimension of Gate Opener: :495*205*315mm
    Carton Size:575*340*315mm
    Packing Weight/Set: :36 KG



    3000kg heavy duty sliding gate opener motor for industrial and factory gates

    Powerful 3000kg sliding gate opener designed for heavy industrial and commercial gates with smooth, secure, and reliable performance.

    Frequently Asked Questions

    What gate size does the Z30T support?

    The Z30T is built for heavy industrial sliding gates up to 4,000 kg, making it ideal for large, high-duty sites.

    What motor and voltage does it use?

    It runs a 1,100 W power, motor on 380 V AC with 3 Phase connection.

    How fast does the Z30T open and close?

    Travel speed is 14 m/min (about 315 mm/sec), balancing throughput with controlled acceleration and deceleration.

    Does the Z30T limit gate length?

    No, there’s no limitation on gate length, provided the overall installation and rack support are correctly engineered.

    What limit switches does it use?

    Dual contactless limit switches provide accurate, low-maintenance end-of-travel detection in harsh environments.

    What operating system does it use?

    INTRUST Eclipse operating system offers menu driven setup on a large LCD with soft start and soft stop, and installer friendly configuration.

    What’s included in the kit?

    Mechanical Limits, Remote, Switch, safety sensor, Alam Light and Accessories.

    Is remote access via phone supported?

    Yes, It's a optional requirement.

    Can the system store many remotes?

    Yes, remote storage is effectively unlimited, supporting high traffic industrial facilities with many users and vehicles.

    Where can I get installation and control manuals?

    Please contact us, we will provide the manual as per requirements.
